Linsn control system.
Special style and customied size.
Application: Mainly used in meeting room, stage show,Exhibiion center, TV studio,shopping mall,railway station,church,bank for the advertising,live show, training, teaching etc. church, shopping mall, airport, railway station and other outdoor advertising and sign display applications
Other size p2, p2.5, p3, p4, p5 flexible modules are optional.
We support the ODM& OEM for the design and module or whole sets.
| Parameter | GTKF-001 |
| Basic | Pixel Configuration | SMD 3 in 1 |
| Parameter | Pixel Pitch (mm) | 4mm |
| Pixel Density | 62,500 pixels/m2 |
| Module Resolution | 16*16 pixels |
| Module Dimension | 64mm×64mm |
| Weight | 9.0 kg/cabinet |
| Cabinet Material | Flexible PCB board |
| Frame Frequency (Hz) | 50/60Hz |
| Brightness (nit) | more than 1200 cd/m2 |
| Viewing angle | 140°/140° |
| Flatness error | ≤0.5mm |
| Using Parameter | Working Voltage (V) | 220V±15% |
| Max. Power Consumption | 800W/m2 |
| Storage Temperature (°C) | -20~60 |
| Operating Temperature (°C) | -10~40 |
| Storage Humidity (RH) | 10%~90% |
| Operating Humidity (RH) | 10%~90% |
| Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION ect |
| Lifetime Typical Value (hrs) | 100,000 |

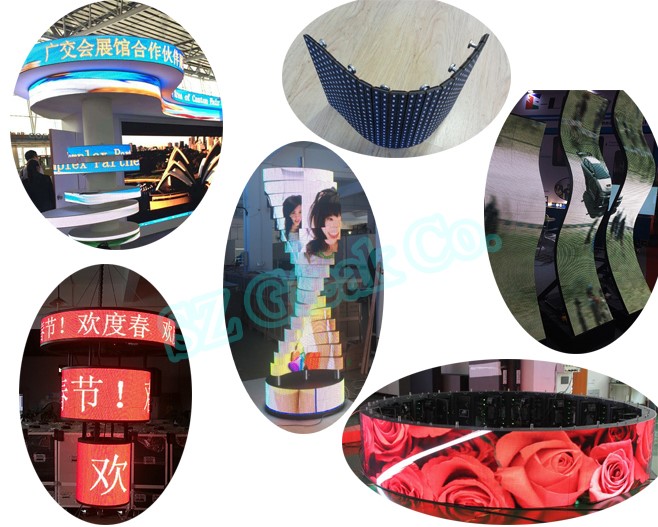

curve led display screen For the celling style& standing style.
standing style curved led screen
Also we have other 3d led round ball led display
Other flexible products introduction
.Flexible and bendable
The flexible chassis and soft cover design enable user to bend it freely, so it can be assembled at any uneven or curved led screen .
2.Super thin and light
Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.
3.Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the on the surface for the curved led tv screen .
4.Low power consumption
The maximal power consumption of a module is less than 12W
5.Wide application
Can be used in so many fields and occasions ,especially in all kinds of irregular buildings . For example hotel advertising,stage renting,television,shopping malls,big markets,outdoor stadiums,concerts, fairground ,sightseeing districts, etc...
